EB013 Full Suspension e-MTB Enduro Carbon Frame

Carbon Full Suspension Enduro e-Bike
Shimano EP801+BT8036

Carbon Full Suspension Enduro e-Bike Shimano EP801+BT8036


Adopt high-sensitivity HORST link 4-Bar virtual pivot suspension system

Rear wheel travel 160mm

Adopt BOOST 148X12 system to enhance frame strength and rigidity, improve riding control, comfort and stability

Combining strength and aesthetics, ergonomic frame design, professional frame geometry design

Fully hidden wiring design Support 12S flywheel and 12 speed crankset 30T to 36T

Assemble 180MM disc, POST MOUNT installation structure

Compatible with SHIMANO EP801,BT E8036 hidden battery

The highly sensitive HORST LINK 4 BAR virtual turning point shock absorber system is used to install the shock absorber at the best balance turning point by extending the shock absorber adapter to form a sensitive, high-efficiency, reduce the stress on the turning point and strengthen the turning point Damping platform for bearing service life

Adopt the international advanced design concept, optimize and analyze the system structure, simulate and analyze on-site riding, leverage ratio, brake interference, pedaling counterattack, anti-squat ability, wheel diameter stroke change trajectory, chain stretching, shock absorber operation Trajectory and turning point maximum force analysis, etc.

Optimal REACH and stem length match, enhance downhill stability and overriding performance

Supportable Tires: 27.5PLUS 2.8”& 29ER 2.6”

Available Sizes: S(40CM); M(42CM); L(48CM)





Compatible Components:


Horst link 4-Bar  160mm (ENDURO)  CARBON FULL SUSPENSION SHIMANO EP801 MOTOR

FORK
         tapered steerer 1.5" - 1 1/8“/ ;   1.8” 29er PLUS travel160mm, boost 110x15

         tapered steerer 1.5" - 1 1/8“/ ;   1.8” 27.5PLUS  travel 170mm, boost 110x15


REAR SHOCK

ROCKSHOX   Super Deluxe TRUNNION MOUNT   FOX FLOAT DPX2

Shock eye-eye: 205-22-54x∅10.0   SHOCK TRAVEL: 65MM   rear travel 160mm

FRAME DESIGN

2021, 38, K, FLOAT, 29in, F-S E-Bike+, 150, Grip 2, HSC, LSC, HSR, LSR, Matte Blk, No Logo, 15QRx110, 1.5 T, 44mm Rake, OE    2. 2020, 36, A, FLOAT, 29in, Rhythm E-Bike, 150, Grip, Sweep-Adj, Matte Blk, No Logo, 15QRx110, 1.5 T, 44mm Rake, OE


HEADSET:

Tapered 1.5" - 1 1/8“/ ;   1.8”
OD 62/74mm / ID 55.95/67.95


BRAKES

Post mount Disc180mm


SEATPOST

adjustable seat tube: 30.9mm / S size 300mm / M 300mm / L 400mm


TIRES

29er:29x2.6”

27.5 PLUS 2.8”

Support 12S flywheel and 12 speed crankset 30T to 36T

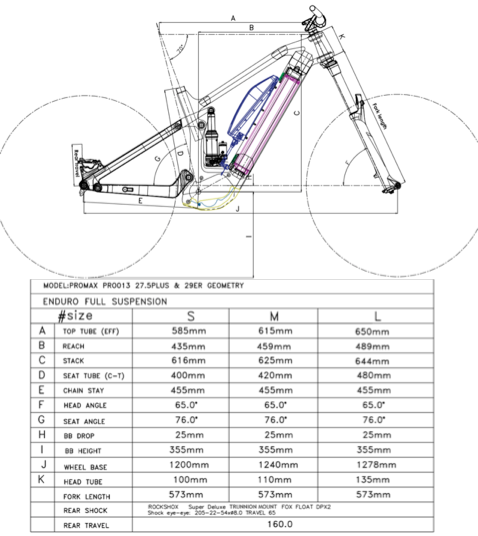

Geometry

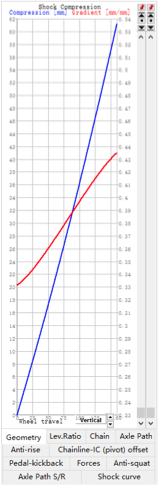

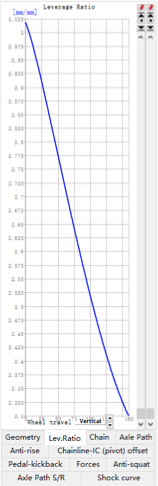

System Curve Analysis
